Only RETINA Edição Profissional supports Custom Translations feature.
Use ThingsBoard Cloud or install your own platform instance.
ThingsBoard Custom Translations feature allows you to upload alternative to existing language translations and extend the translation to specific GUI elements on the dashboards.
See video tutorial below for step-by-step instruction how to use this feature.
Using Locale files
- Explain “Language” selector;
- Explain “Download locale file” button (all available translations);
- how to overwrite one of the translations;
- example of the JSON with “real” values.
Custom menu labels
Custom dashboard title
Custom widget title
Custom widget legend
Dynamic widget label
Using Custom translations
- How to change dashboard title
- How to change dashboard widget title
- How to change dashboard widget legend
- example of the JSON
How to use Custom Translations in Widgets
Custom Translation can be used in widgets: in the post-processing function, as a value, or in the title.

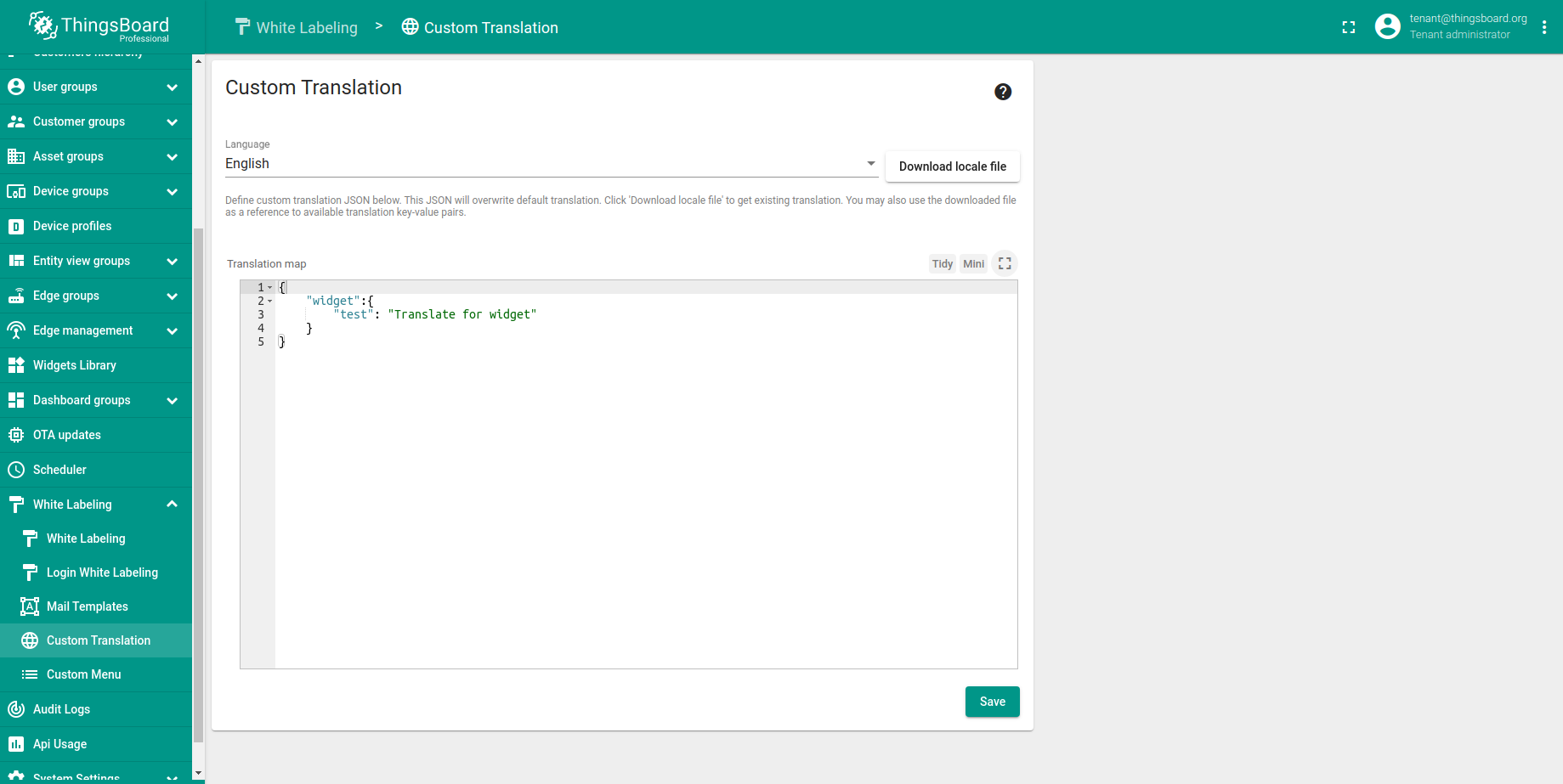

- Step 1. Specify new custom translation. In our case this is "widget.test".

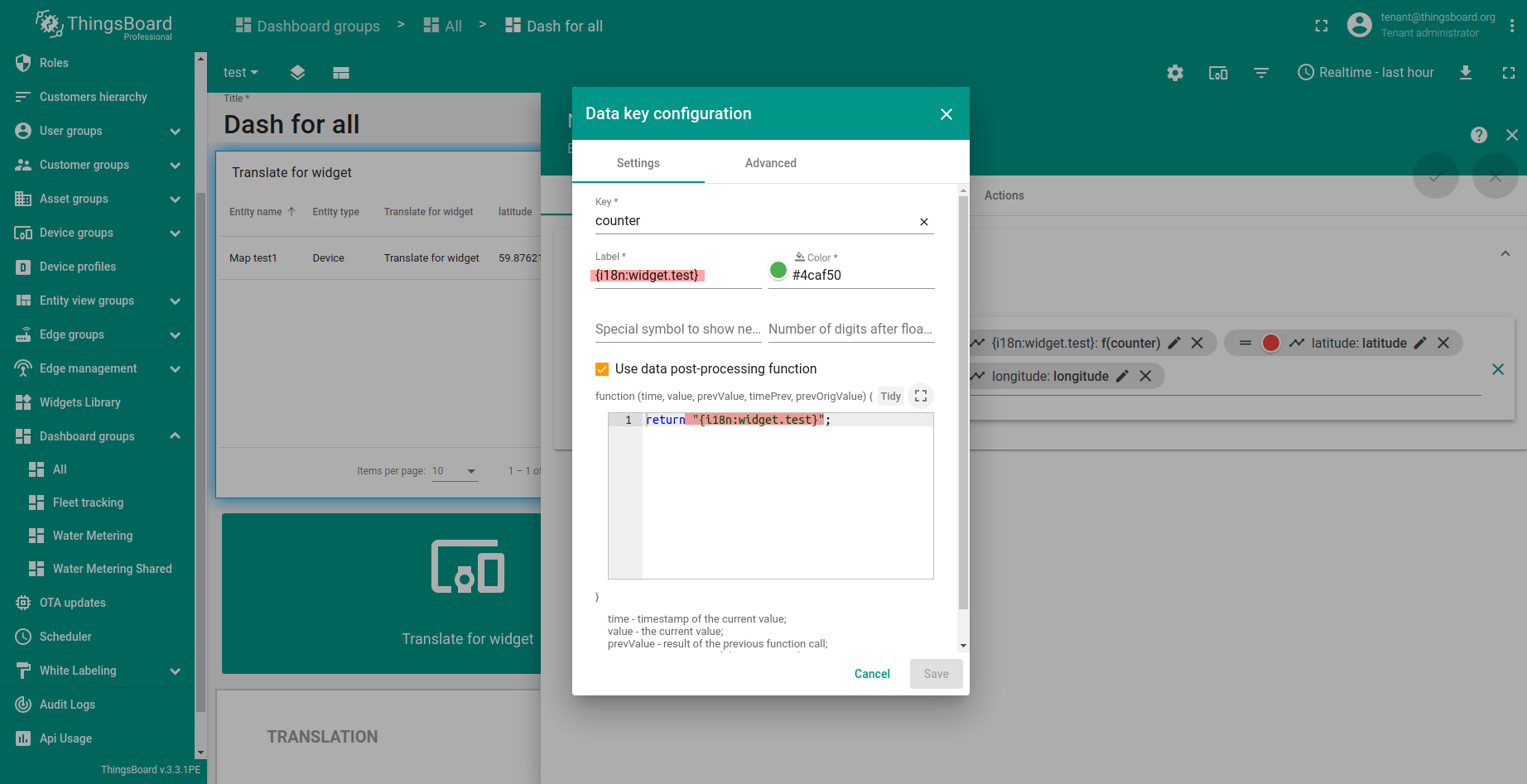

- Step 2. Reference custom translation in the data post-processing function. Note the required syntax: {i18n:widget.test}.

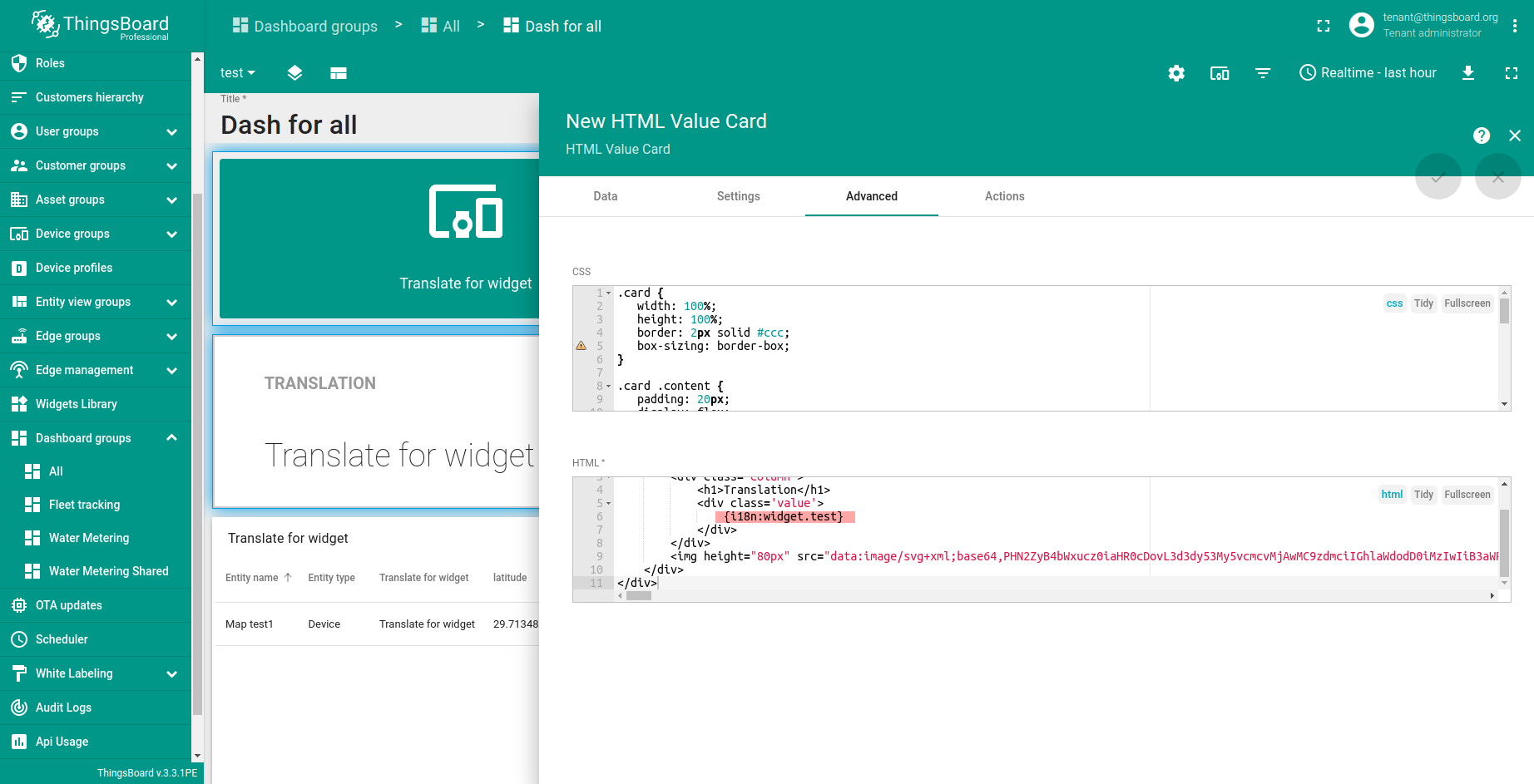

- Step 3. Reference custom translation in the HTML Value Card. Note the required syntax: {i18n:widget.test}.

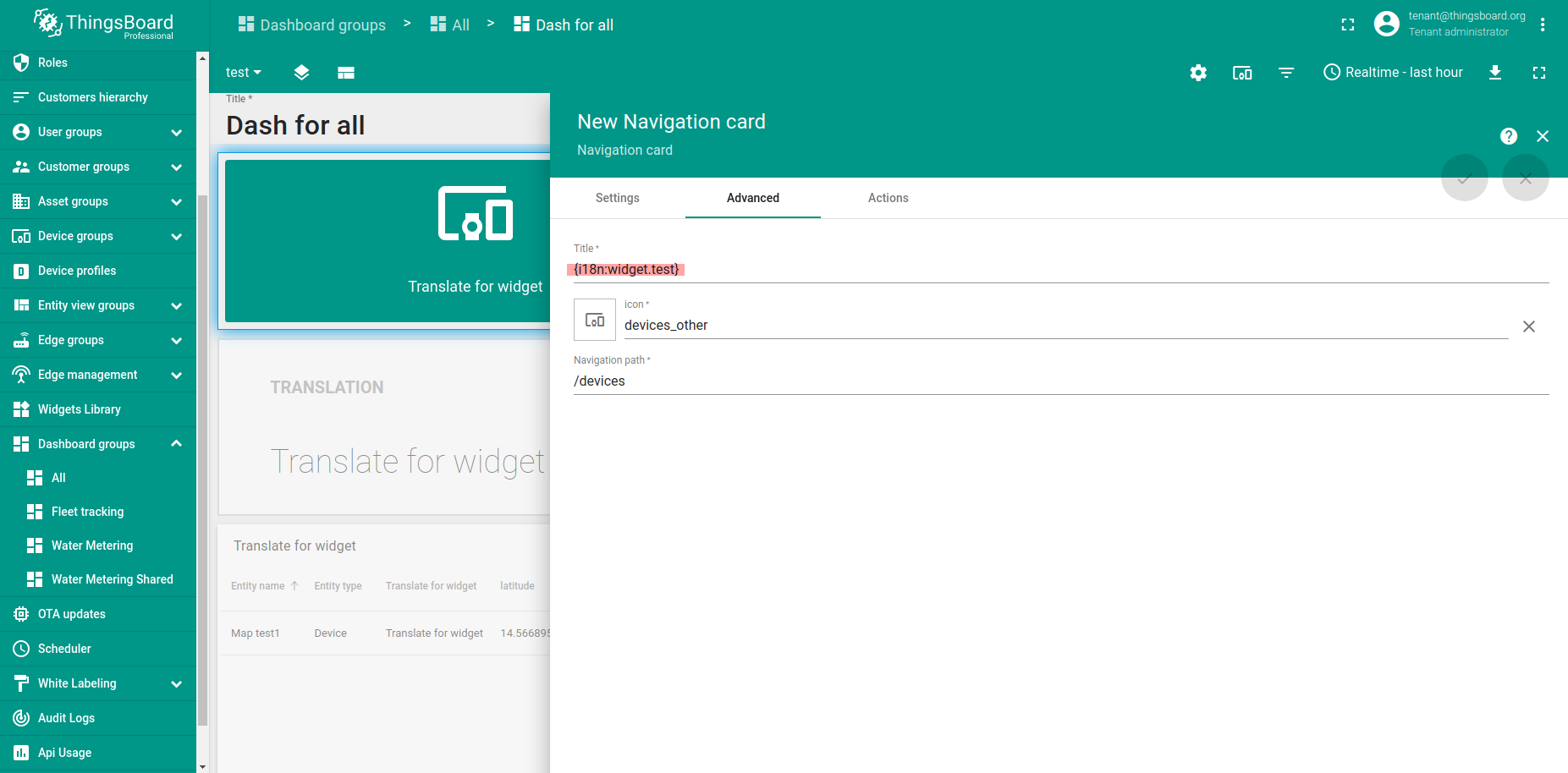

- Step 4. Reference custom translation in the title of “Navigation Card”. Note the required syntax: {i18n:widget.test}.
Custom Translation is not available in the Analogue gauges, HTML Card, Control Widgets, Files widgets, Date widget, Gateways widgets, Scheduling widgets.
Limitations of the Custom Translations in Widgets
-
