Microservices setup using AWS infrastructure

This guide will help you to setup ThingsBoard in microservices mode in AWS EKS.

Install and configure tools

To deploy ThingsBoard on EKS cluster you’ll need to install kubectl, eksctl and awscli tools.

Afterwards you need to configure Access Key, Secret Key and default region. To get Access and Secret keys please follow this guide. The default region should be the ID of the region where you’d like to deploy the cluster.

1

aws configure

Step 1. Clone ThingsBoard PE K8S scripts repository

1
2

git clone https://github.com/thingsboard/thingsboard-pe-k8s.git
cd thingsboard-pe-k8s/aws/microservices

Step 2. Configure and create EKS cluster

In the cluster.yml file you can find suggested cluster configuration. Here are the fields you can change depending on your needs:

  • region - should be the AWS region where you want your cluster to be located (the default value is us-east-1)
  • availabilityZones - should specify the exact IDs of the region’s availability zones (the default value is [us-east-1a,us-east-1b,us-east-1c])
  • instanceType - the type of the instance with TB node (the default value is m5.xlarge)

Note: if you don’t make any changes to instanceType and desiredCapacity fields, the EKS will deploy 3 nodes of type m5.xlarge.

In case you want to secure access to the PostgreSQL and MSK, you’ll need to configure the existing VPC or create a new one, set it as the VPC for the ThingsBoard cluster, create security groups for PostgreSQL and MSK, set them for node node-group in the ThingsBoard cluster and configure the access from the ThingsBoard cluster nodes to PostgreSQL/MSK using another security group.

You can find more information about configuring VPC for eksctl aqui.

Command to create AWS cluster:

1

eksctl create cluster -f cluster.yml

Step 3. Create AWS load-balancer controller

After the cluster is ready you’ll need to create AWS load-balancer controller. You can do it by following this guide.

Step 4. Amazon PostgreSQL DB Configuration

You’ll need to set up PostgreSQL on Amazon RDS. One of the ways to do it is by following this guide.

Note: Make sure your database is accessible from the cluster, one of the way to achieve this is to create the database in the same VPC and subnets as ThingsBoard cluster.

aqui you should choose VPC with the name of your cluster:


aqui you should choose security group corresponding to the one on the screen:


Note: in order to make PostgreSQL more secure you may create the separate security group, configure access only to the 5432 port and from the ThingsBoard nodes. This can be achieved if you assigned security group to the node node-group in the cluster.yml file.

Make sure that thingsboard database is created along with PostgreSQL instance (or create it afterwards).


Nota: You may also change username and password fields.

Step 5. Amazon MSK Configuration

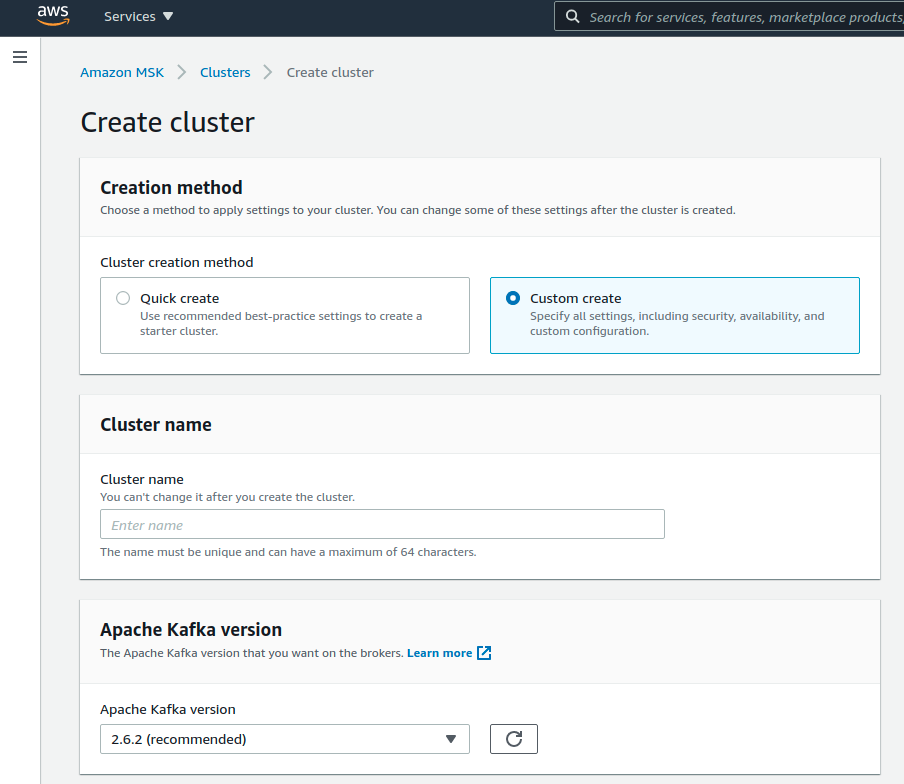

You’ll need to set up Amazon MSK. To do so you need to open AWS console, MSK submenu, press Create cluster button and choose Custom create mode. You should see the similar image:

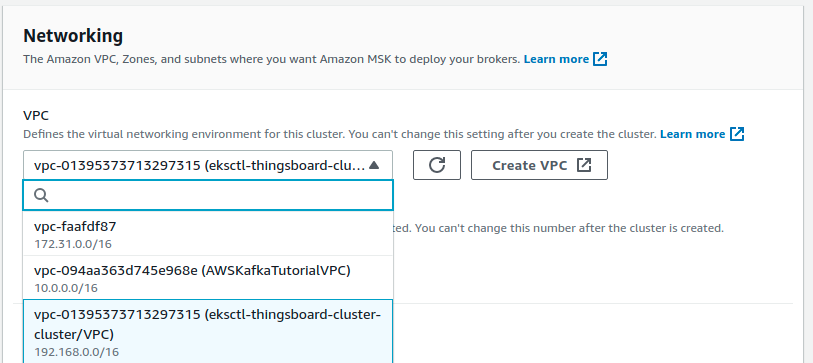

Now you should choose the ThingsBoard cluster’s VPC for the Kafka cluster:


You can choose any zones and subnets.

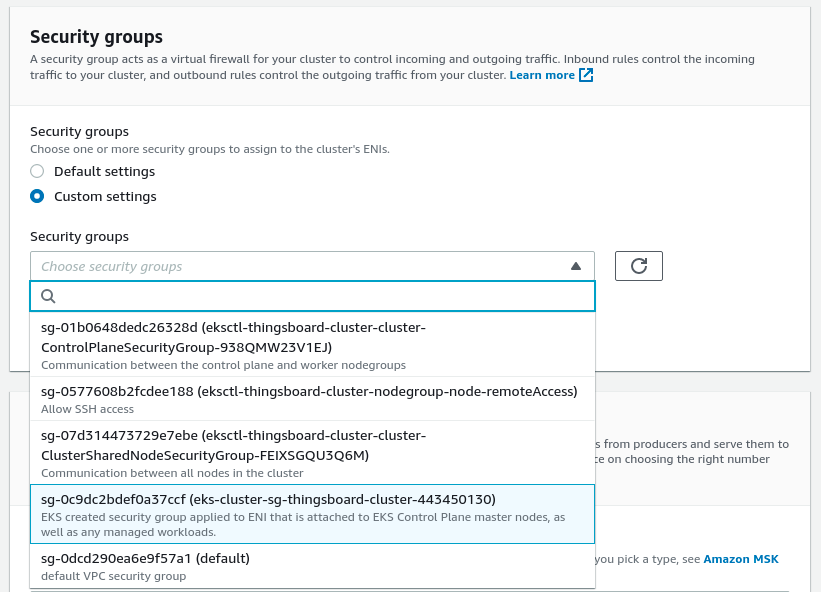

After that you need to select Custom settings of security groups and choose groups corresponding to the group on the screen:

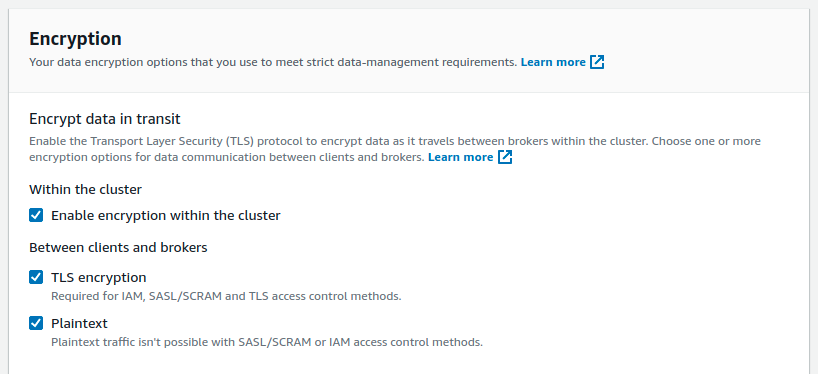

Also you should enable Plaintext communication between clients and brokers:


Note: in order to make MSK more secure you may create the separate security group, configure access only to the 9092 port and from the ThingsBoard nodes. This can be achieved if you assigned security group to the node node-group in the cluster.yml file.

Step 6. Amazon ElactiCache (Redis) Configuration

You’ll need to set up Amazon ElastiCache (Redis).

When creating Redis cluster you should choose Create new for Subnet group menu:

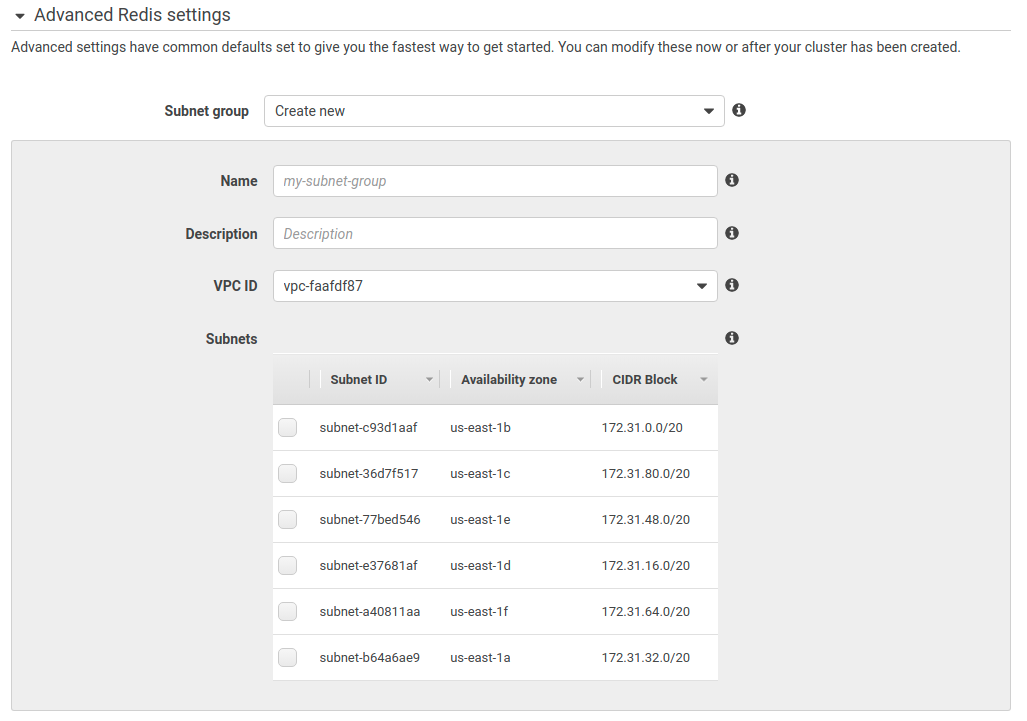

Then you should choose your ThingsBoard cluster’s VPC (you can see the ID of your VPC under the VPC section of AWS console) and any of the subnets.

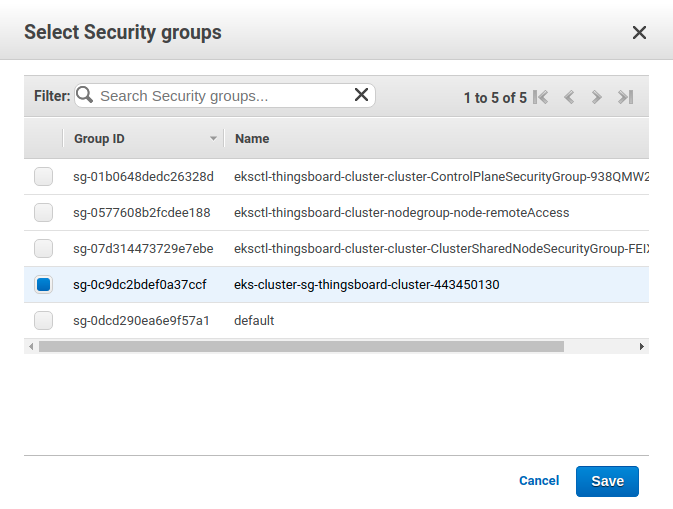

Afterwards, edit the Security groups field of the creating form and choose the corresponding security group from your ThingsBoard cluster as on the next screen:


Amazon RDS PostgreSQL

On AWS Console get the Endpoint of the RDS PostgreSQL and paste it to SPRING_DATASOURCE_URL in the tb-node-db-configmap.yml instead of your_url.


Also, you’ll need to set SPRING_DATASOURCE_USERNAME and SPRING_DATASOURCE_PASSWORD with PostgreSQL username and password corresponding.

Amazon MSK

To get the list of brokers call the command:

1

aws kafka get-bootstrap-brokers --region us-east-1 --cluster-arn $CLUSTER_ARN

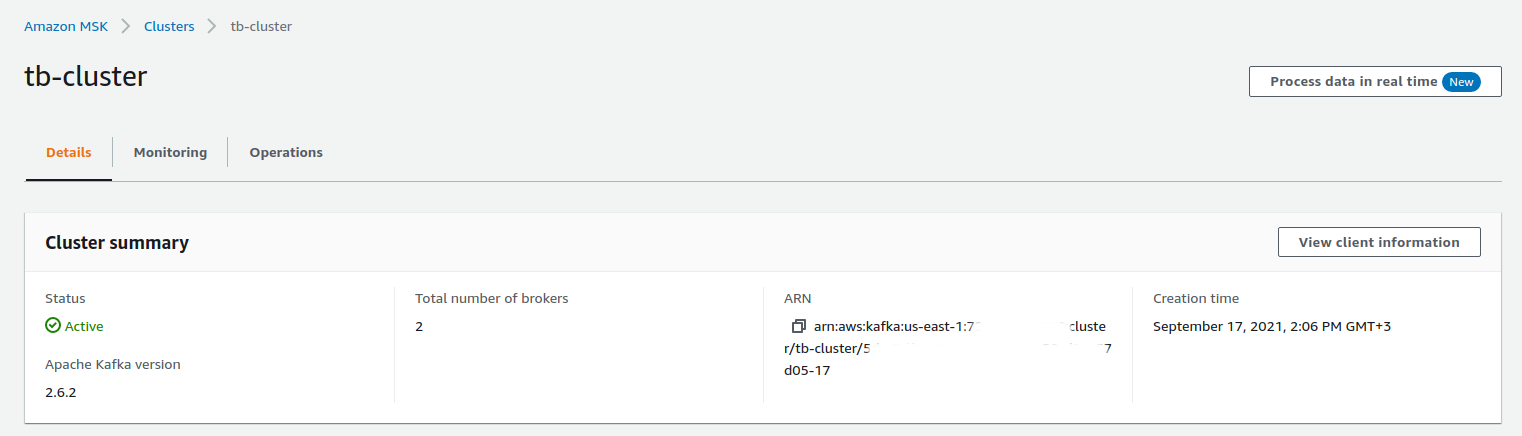

Where $CLUSTER_ARN is the Amazon Resource Name (ARN) of the MSK cluster:


You’ll need to paste data from the BootstrapBrokerString to the TB_KAFKA_SERVERS environment variable in the tb-kafka-configmap.yml file.

Amazon ElastiCache Redis

aqui you can find information on how to get Redis endpoints.

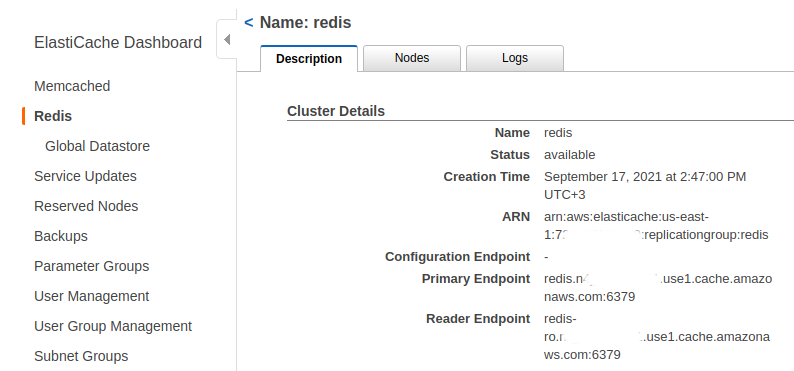

You’ll need to paste hostname (part without :6379) from the Primary Endpoint to the REDIS_HOST environment variable in the tb-redis-configmap.yml file:


Step 8. Upload Docker credentials

Make sure your have logged in to docker hub using command line. To upload Docker credentials, please execute next command:

1

./k8s-upload-docker-credentials.sh

Or you can use the following command:

1

kubectl create secret docker-registry regcred --docker-server=https://index.docker.io/v1/ --docker-username=$YOUR_USERNAME --docker-password=$YOUR_PASSWORD --docker-email=$YOUR_EMAIL

Step 9. Installation

Execute the following command to run installation:

1

 ./k8s-install-tb.sh --loadDemo

Where:

  • --loadDemo - optional argument. Whether to load additional demo data.

After this command finish you should see the next line in the console:

1

Installation finished successfully!

Otherwise, please check if you set the PostgreSQL URL in the tb-node-db-configmap.yml correctly.

Step 10. Configure secure HTTP connection

Note: if you don’t need SSL connection over HTTP, you’ll need to remove alb.ingress.kubernetes.io/listen-ports and alb.ingress.kubernetes.io/certificate-arn lines in the routes.yml file and skip this step.

Use AWS Certificate Manager to create or import SSL certificate. After creation/import you’ll need to copy certificate’s ARN and paste it instead of ARN_VALUE in the routes.yml file:


Step 11. Configure secure MQTT connection

Follow this guide to create a .jks file with the SSL certificate. Afterwards, you need to set MQTT_SSL_KEY_STORE_PASSWORD and MQTT_SSL_KEY_PASSWORD environment variables in the thingsboard.yml file to the corresponding key-store and certificate key passwords.

You’ll need to create a config-map with your JKS file, you can do it by calling command:

1
2

kubectl create configmap tb-mqtts-config \
             --from-file=server.jks=YOUR_JKS_FILENAME.jks -o yaml --dry-run=client | kubectl apply -f -

where YOUR_JKS_FILENAME is the name of your .jks file.

Note: if you don’t need SSL connection over MQTT, you’ll need to set MQTT_SSL_ENABLED environment variable to false and delete all notions of tb-mqtts-config in the thingsboard.yml file.

Step 12. CPU and Memory resources allocation

The scripts have preconfigured values of resources for each service. You can change them in .yml files under resources submenu.

Note: if you want to allocate more resources you’ll need to increase the number of Amazon nodes or use larger machines.

Recommended CPU/memory resources allocation:

  • TB Node: 1.5 CPU / 6Gi memory
  • TB HTTP Transport: 0.5 CPU / 2Gi memory
  • TB MQTT Transport: 0.5 CPU / 2Gi memory
  • TB COAP Transport: 0.5 CPU / 2Gi memory
  • TB Web UI: 0.3 CPU / 0.5Gi memory
  • JS Executor: 0.1 CPU / 0.3Gi memory
  • Zookeeper: 0.3 CPU / 1Gi memory

Step 13. Starting

Execute the following command to deploy resources:

1

 ./k8s-deploy-resources.sh

After few minutes you may call kubectl get pods. If everything went fine, you should be able to see tb-coap-transport-0, tb-http-transport-0, tb-mqtt-transport-0, two tb-js-executor, tb-node-0, tb-web-ui and 3 zookeeper pods. Every pod should be in the READY state.

Step 14. Using

Now you can open ThingsBoard web interface in your browser using DNS name of the load balancer.

You can see DNS name (the ADDRESS column) of the HTTP load-balancer using command:

1

kubectl get ingress

You should see the similar picture:


To connect to the cluster via MQTT or COAP you’ll need to get corresponding service, you can do it with command:

1

kubectl get service

You should see the similar picture:


There are two load-balancers:

  • tb-mqtt-loadbalancer-external - for MQTT protocol
  • tb-coap-loadbalancer-external - for COAP protocol

Use EXTERNAL-IP field of the load-balancers to connect to the cluster.

Use the following default credentials:

  • System Administrator: sysadmin@thingsboard.org / sysadmin

If you installed DataBase with demo data (using --loadDemo flag) you can also use the following credentials:

  • Tenant Administrator: tenant@thingsboard.org / tenant
  • Customer User: customer@thingsboard.org / customer

In case of any issues you can examine service logs for errors. For example to see ThingsBoard node logs execute the following command:

1

kubectl logs -f tb-node-0

Or use kubectl get pods to see the state of the pods. Or use kubectl get services to see the state of all the services. Or use kubectl get deployments to see the state of all the deployments. See kubectl Cheat Sheet command reference for details.

Execute the following command to delete all ThingsBoard pods:

1

./k8s-delete-resources.sh

Execute the following command to delete all ThingsBoard pods and configmaps:

1

./k8s-delete-all.sh

Execute the following command to delete EKS cluster (you should change the name of the cluster and zone):

1

eksctl delete cluster -r us-east-1 -n thingsboard-cluster -w

Upgrading

In case when database upgrade is needed, execute the following commands:

1
2
3

 ./k8s-delete-resources.sh
 ./k8s-upgrade-tb.sh --fromVersion=[FROM_VERSION]
 ./k8s-deploy-resources.sh

Where:

  • FROM_VERSION - from which version upgrade should be started. See Upgrade Instructions for valid fromVersion values.
